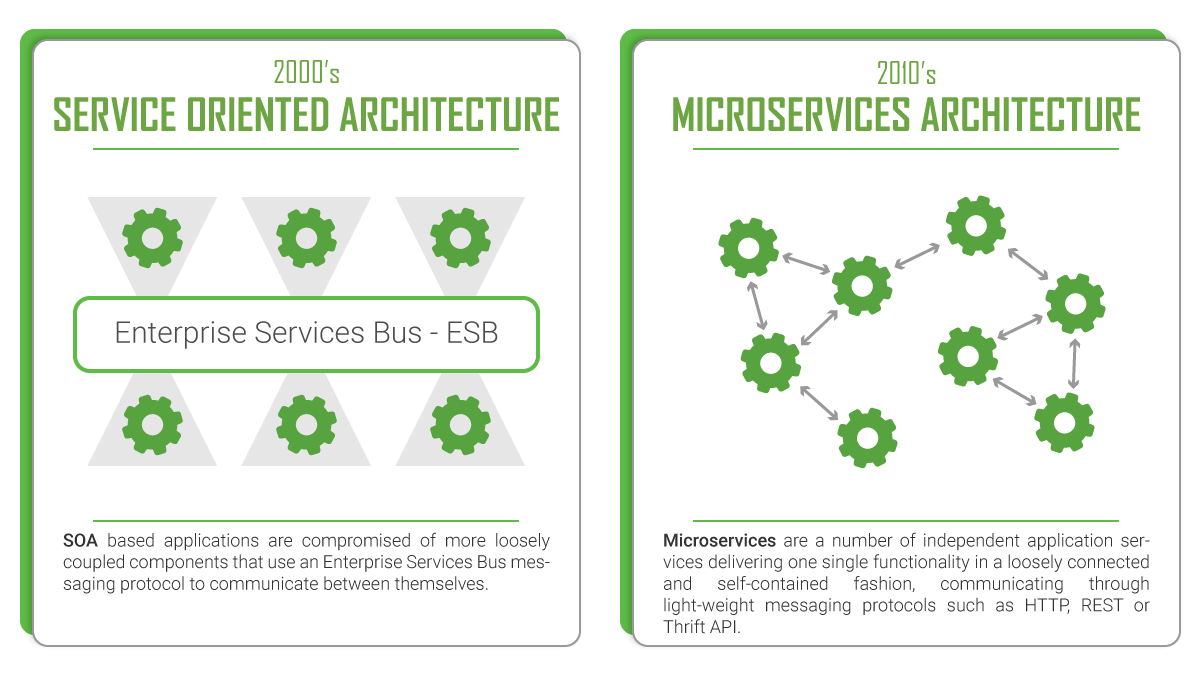

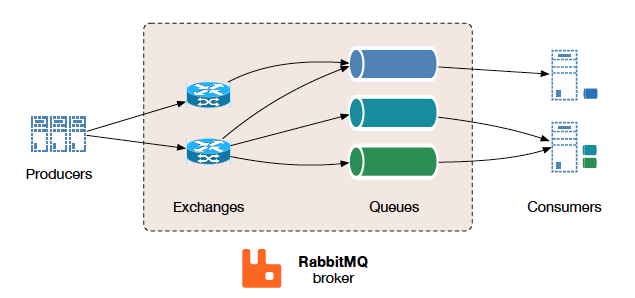

class: center, middle # Message Bus --- # Agenda 1. What is a Message Bus 1. Architectures using Message Bus 1. Message Bus Basics 1. Different Message Bus Products 1. RabbitMQ & Tutorial 1. NServiceBus & Tutorial 1. More complex RabbitMQ scenarios 1. Apache Kafka ??? --- # What is a message bus? A __Message Bus__ is an additional messaging layer – a __router__ for messages. <br/>  -- Ensures that the __right message__ gets to the __right destination__. Helps you create __decoupled__ applications that are easier to maintain, extend, scale and test. ??? Hot thing in the modern web scale times. Easy to pass messages between applications. --- # Terminology * Service Bus * Message Bus * Service Broker * Message Broker * Enterprise Service Bus (ESB) * Enterprise Application Integration (EAI) ??? * EAI is something big scale architects like to use. Framework for integrating to different systems. * ESB has a bad reputation in modern micro service times (too big) --- # Terminology 1. __Broker__ has its own central piece of software. 1. __Bus__ has no software. Provides a common protocol, data model and command set. ??? * RabbitMQ and Kafka are a broker * NServiceBus is a bus * No installation but required lot's of configuration * Different messaging channels etc. --- # ESB __Enterprise Service Bus__ is often combined with __Service Oriented Architecture__. -- __SOA__ is an architectural pattern where you have multiple services instead of a monolith. It does not prescribe any implementation details. __SOA__ exposes _services_ in a coarse (__SOAP__) or fine (__RESTFul__) grained manner. It is a lightweight interaction between systems that usually speak _HTTP_, _TCP_, ... (also implementation detail). ??? * Extremely hard to define what SOA actually is. * Pretty much norm in Software Development, that defining anything is extremely hard * Everything has multiple definitions * No one agrees on anything --- # SOA vs Microservice architecture * What is the difference? * __SOA__ is complicated (old) * __Microservice__ is simple (new) -- One common definition is that __SOA__ usually deployed all at once. __Microservices__ independently.  __SOA__ usually had a __Service Bus__, __Microservices__ not (sometimes yes). ??? * Same problem with all modern software development, as new good, old bad * SOA XML, Microsoervices JSON? (WTF) * SOA people were too much architect astronauts --- # SOA vs Microservice architecture Microservices have same problems as SOA, so __Bus__ has been replaced with other solutions, e.g. * Service Discovery * Service Mesh * (API Gateway) --- # REST vs SOAP * REST (_JSON over HTTP_) is lightweight * SOAP is heavy ### Differences * SOAP had WSDL, REST has nothing * Now has Swagger (OpenAPI) * SOAP had XML schemas, REST has plain JSON * Now has JSON schema etc. for message validation * SOAP had HTTP, SMTP, TCP..., REST has HTTP (usually) --- ### REST vs SOAP For consumers there is not much difference, if producer creates the models for the service. ``` 2000: Write 100s of lines of XML to "declaratively" configure your servlets and EJBs 2018: Write 100s of lines of YAML to "declaratively" configure your microservices At least XML had schemas... ``` https://twitter.com/dr_c0d3/status/1040092903052378112?s=19 ??? * E.g. Clients created from the Swagger definitions --- ### Service Discovery  ??? * This is extremely recommended * Release variables are also good, but now as good as this --- ### Service Mesh A service mesh is a dedicated infrastructure layer for handling service-to-service communication. It’s responsible for the reliable delivery of requests through the complex topology of services.  ??? * Sounds pretty much same as service bus --- ### Service Mesh - another example __Plain Microservices__  -- __With Service Mesh__  ??? * All communication with Service Mesh infrastructure * Not much different than commonly used now with Swagger generated clients * Client could use some Service Mesh communication * NOTE: SOA also created clients "automatically" --- ### API Gateway API Gateway can have a __Service Mesh__ built in.   --- # Why to use? ### Olden times IT: > _"Nobody ever got fired for buying IBM."_ ### Modern Software Architects: > _"Nobody ever got fired for choosing a message bus."_ ??? * Safe starting point for any system is a message bus * Using Kafka that persists all messages even safer --- # Why to use? * Easy routing * Bus is the only endpoint * Send single message to multiple endpoints * Persistence * Resend * Asynchronous * No need to wait for result * Monitoring in-built (Brokers) * Scale / Decouple / Maintain / Test ??? * Service Mesh still pretty new (02/2018 and still is 01/2019) --- # Why not to use? Same reasons as with all architectures and patterns: * If not really needed, then adds unnecessary complexity * More complexity for programmers * More complexity for operations * Request / response handling is pretty complex * If library doesn't provide, then needs own wrappers * Easy to implement bad messaging processes * Designing good processes is hard ??? * Req/response * e.g. How can client know the the message was processed and if there was an error what was it? --- # Basic Message Bus Jargon * Producer * Application that sends messages * Consumers * Application that processes messages * Exchange * Endpoint that directs messages to correct location * Queue * Data structure where messages are stored (FIFO) * Partition * Data structure where messages are stored (Read with offset) * Dead Letter * Not valid message or message that can't be processed for some reason  ??? * Dead Letter: rejected, not ok, queue full, ttl expired * Different systems have a different way to handle these * Acknowledgements, supported --- ### Products * RabbitMQ * Kafka * Redis Pub/Sub * AWS * Simple Queue * Message Queue * Message Broker - Pub/Sub * ... * Azure * Service Bus * SQL Server Service Broker * NServiceBus * MassTransit * ZeroMQ * MSMQ ??? * Some are .NET specific --- # RabbitMQ  -- <br/> <br/>  --- # RabbitMQ  --- # Apache Kafka  --- # Azure Service Bus  --- # Basics (RabbitMQ) Simplified overview: 1. Consumers maintain persistent TCP connections with RabbitMQ and declare which queue(s) they consume 1. Publishers send messages to exchanges 1. Exchanges route messages to queues and other exchanges 1. RabbitMQ sends acknowledgements to publishers on message receipt 1. RabbitMQ pushes messages to consumers 1. Consumers send acknowledgements of success/failure 1. Messages are removed from queues once consumed successfully  ??? * Exchanges and queues live inside RabbitMQ * Consumers and Producers are "user code" / servies --- # RabbitMQ Routing * Fanout * Routes to all queues and exchanges that have a binding to the exchange. The standard pub sub model. * Direct * Routes messages based on a Routing Key that the message carries with it, set by the publisher. * Topic * Routes messages based on a routing key, but allows wildcard matching.  --- # RabbitMQ Tutorial #### Start RabbitMQ with Docker Use image with Management plugin (rabbitmq:3-management) https://hub.docker.com/_/rabbitmq/ ```sh $ docker run -d --hostname my-rabbit --name some-rabbit -p 5672:5672 -p 15672:15672 rabbitmq:3-management ``` #### Open Management http://localhost:15672 `guest/guest` --- # RabbitMQ Tutorial GitHub repo: https://github.com/rabbitmq/rabbitmq-tutorials C# code: https://github.com/rabbitmq/rabbitmq-tutorials/tree/master/dotnet-visual-studio Tutorial: https://www.rabbitmq.com/getstarted.html C# API Guide: https://www.rabbitmq.com/dotnet-api-guide.html --- # RabbitMQ Tutorial #### [Tutorial 1: "Hello World!"](http://www.rabbitmq.com/tutorial-one-dotnet.html) * Send a simple message to queue and process it * Uses __Direct__ routing to `hello` queue  ??? ```sh .\1_Send\bin\Debug\1_Send.exe .\1_Receive\bin\Debug\1_Receive.exe ``` ??? * Show how to use RabbitMQ in Web API * https://github.com/ttu/chat-server/blob/4318ffa5997bd35f0e67b3673fc5b4f48b2a1c26/src/ChatServer/Startup.cs#L45 --- # RabbitMQ Tutorial #### [Tutorial 2: Work Queues](http://www.rabbitmq.com/tutorial-two-dotnet.html) * Distributing tasks among workers * Use Round-robin dispatching * Use __Direct__ routing to `task_queue` queue  ??? ```sh .\2_Worker\bin\Debug\2_Worker.exe .\2_Worker\bin\Debug\2_Worker.exe .\2_NewTask\bin\Debug\2_NewTask.exe ``` --- # RabbitMQ Tutorial #### [Tutorial 3: Publish/Subscribe](http://www.rabbitmq.com/tutorial-three-dotnet.html) * Sending messages to many consumers at once * Uses __Fanout__ routing with exchange  ??? ```sh .\3_EmitLog\bin\Debug\3_EmitLog.exe "Why hello all!" .\3_ReceiveLogs\bin\Debug\3_ReceiveLogs.exe .\3_ReceiveLogs\bin\Debug\3_ReceiveLogs.exe ``` --- # RabbitMQ Tutorial #### [Tutorial 4: Routing](http://www.rabbitmq.com/tutorial-four-dotnet.html) * Send a bunch of messages and process those with multiple consumers * Uses __Direct__ routing with exchange  ??? ```sh .\4_ReceiveLogsDirect\bin\Debug\4_ReceiveLogsDirect.exe "info" "debug" "error" .\4_ReceiveLogsDirect\bin\Debug\4_ReceiveLogsDirect.exe "error" .\4_EmitLogDirect\bin\Debug\4_EmitLogDirect.exe "info" "Testing info message" .\4_EmitLogDirect\bin\Debug\4_EmitLogDirect.exe "error" "Something bad just happened" ``` --- # RabbitMQ Tutorial #### [Tutorial 5: Topics](http://www.rabbitmq.com/tutorial-five-dotnet.html) * Send a bunch of messages and process those with multiple consumers * Uses __Topic__ with exchange  ??? ```sh # All messages .\5_ReceiveLogsTopic\bin\Debug\5_ReceiveLogsTopic.exe "#" # All statring kern .\5_ReceiveLogsTopic\bin\Debug\5_ReceiveLogsTopic.exe "google.*" .\5_ReceiveLogsTopic\bin\Debug\5_ReceiveLogsTopic.exe "*.info" .\5_EmitLogTopic\bin\Debug\5_EmitLogTopic.exe "google.debug" "hello from Google debug" .\5_EmitLogTopic\bin\Debug\5_EmitLogTopic.exe "abba.all" "Hello from Abba all" .\5_EmitLogTopic\bin\Debug\5_EmitLogTopic.exe "abba.info" "Hello from Abba info" ``` --- # RabbitMQ Tutorial #### [Tutorial 6: RPC](http://www.rabbitmq.com/tutorial-six-dotnet.html) * Send a bunch of messages and process those with multiple consumers  ??? ```sh .\6_RPCServer\bin\Debug\6_RPCServer.exe .\6_RPCCLient\bin\Debug\6_RPCCLient.exe ``` --- # NServiceBus > NServiceBus, the heart of the system, is a messaging and workflow framework that helps create distributed systems that are scalable, reliable and easy to modify. --- # Why NServiceBus * Supports various messaging patterns * Handles long runnign processes (Sagas) * Quarantees _'at least once'_ and _'exactly once'_ delivery * Automatic Retry * Error Queue and Manual inspection/resend * No need to install specific server * Can be used with different queueing technologies * Provides more functionality out of the box * Extensible * Code based ??? * Move from local MSMQ to e.g. Azure relatively simple * If plain broker is used developers need to develop lots of functionality * https://stackoverflow.com/a/38125057/1292530 --- # Tutorial: NServiceBus https://docs.particular.net/tutorials/nservicebus-step-by-step/ <br/> <br/>  --- # Tutorial: NServiceBus Sagas _Sagas a message-driven state machine, or a collection of message handlers that persist shared state_ https://docs.particular.net/tutorials/nservicebus-sagas/1-getting-started/ <br/>  ??? * Saga pattern is also commonly used * Microservices Saga: https://microservices.io/patterns/data/saga.html * Redux Saga --- # Tutorial: NServiceBus RabbitMQ transport https://docs.particular.net/transports/rabbitmq/ ### NOTES * Use `UseConventionalRoutingTopology` * Use default connection string: `"host=localhost;username=guest;password=guest"` * Sagas need persistance (`LearningPersistence` is fine) * Use `endpointConfiguration.EnableInstallers()` to autmatically create queues ??? * https://docs.particular.net/persistence/ * https://docs.particular.net/transports/queuecreation * https://docs.particular.net/nservicebus/operations/installers --- # RabbitMQ scenarios - Scatter Gather > The Scatter-Gather routes a request message to the a number of recipients. It then uses an Aggregator to collect the responses and distill them into a single response message. [enterpriseintegrationpatterns.com](https://www.enterpriseintegrationpatterns.com/patterns/messaging/BroadcastAggregate.html)  ??? * Common patterns that are not only message bus related --- # RabbitMQ scenarios - Client Specific Workers  --- # Apache Kafka * Kafka is a distributed, replicated commit log * Kafka does not have the concept of a queue * Messages are stored in partitioned, append only commit logs which are called __Topics__  ??? * The concept of a log is the principal killer feature of Kafka. * ZooKeeper is a centralized service for maintaining configuration information, naming, providing distributed synchronization, and providing group services * Other similar products * Azure Event Hub * AWS Kinesis --- # Topics, Partitions and Consumers * __Topic__ can have one or more __partitions__ * Partition is a separate data file which guarantees message ordering * One partition can't support competing consumers (multiple instance of same application) * Partition can support multiple different consumers * If __Topic__ has multiple __partitions__, Kafka uses round robin delivery  --- # Consumer Groups * Same type of consumers can be added to a __Consumer group__ * Each consumer in the group requires an __own partition__ * Consumers can listen to multiple partitions * Partitions are reassigned automatically if new consumers appear * Producer can also define index of partition where messages are sent * When new consumer starts to listen topic, it will start from offset 0 * Offset is stored to Kafka or told by consumer in manual mode <br/>  ??? * Kafka recommends that all topics are set up manually. * Partitions need to be created manually. --- # Kafka vs RabbitMQ * RabbitMQ * More complex routing possibilities * Knows state of Consumerd/Acknowledgments messages * Request/reply, and publish/subscribe * Better Management * Kafka * Can handle lots of data (100k/sec vs RabbitMQ 20k/sec) * Replay * Should be used only for streaming, not for messaging --- # Apache Kafka ### Run with Docker ```ps $ docker run -p 2181:2181 -p 9092:9092 --env ADVERTISED_HOST=localhost --env ADVERTISED_PORT=9092 --name spotify-kafka spotify/kafka ``` ### Management Use http://www.kafkatool.com/ TODO: Fix container communication ```sh $ docker run -p 2181:2181 -p 9092:9092 -p 9000:9000 --env ADVERTISED_HOST=localhost --env ADVERTISED_PORT=9092 --name spotify-kafka spotify/kafka $ docker run -it --rm --net=container:spotify-kafka -e ZK_HOSTS="localhost:9092" -e APPLICATION_SECRET=letmein sheepkiller/kafka-manager ``` ??? * $ docker run -it --rm -p 9000:9000 --net=container:spotify-kafka -e ZK_HOSTS="localhost:9092" -e APPLICATION_SECRET=letmein sheepkiller/kafka-manager --- # Apache Kafka Tutorial Create Producer and Consumer: https://github.com/confluentinc/confluent-kafka-dotnet Check producer and consumer from examples in the GitHub repo NOTE: Create Topic and partitions manually, as by default only single partition for the topic is created ```sh $ docker exec -it spotify-kafka /bin/bash $ ./opt/kafka_2.11-0.10.1.0/bin/kafka-topics.sh --create --zookeeper localhost:2181 --replication-factor 1 --partitions 2 --topic best-topic ``` --- # Apache Kafka Tutorial Start producer and consumers: ```sh # Start producer dotnet KafkaProducer\bin\Debug\netcoreapp2.2\KafkaProducer.dll # Star consumers dotnet KafkaConsumer\bin\Debug\netcoreapp2.2\KafkaConsumer.dll "my-group-1" dotnet KafkaConsumer\bin\Debug\netcoreapp2.2\KafkaConsumer.dll "my-group-2" .\KafkaClient\bin\Debug\KafkaClient.exe "my-group-1" .\KafkaClient\bin\Debug\KafkaClient.exe "my-group-2" # Later start 2 consumers more dotnet KafkaConsumer\bin\Debug\netcoreapp2.2\KafkaConsumer.dll "my-group-3" dotnet KafkaConsumer\bin\Debug\netcoreapp2.2\KafkaConsumer.dll "my-group-2" .\KafkaClient\bin\Debug\KafkaClient.exe "my-group-3" .\KafkaClient\bin\Debug\KafkaClient.exe "my-group-2" ``` ??? * "my-group-3" will get all messages from the beginning * "my-group-2" started later will take one partition from the first consumer * Messages are distributed almost round robin --- # Kafka / Azure Event hub / Commit log * Designed to handle very large quantities of small messages driven by events -- * Almost every common IT use case * Driven by streams of events each producing some data * Consumed by downstream systems -- * Example Event streams: * In a retail system contain orders, shipments, returns etc. * A bank account processes debits and credits. * Financial systems process stock ticks, orders, etc. * Web sites have streams of page views, clicks, and so on. * Every HTTP request a web server receives is an event. * An RDBMS database is the result of a series of transactions which are events. -- * Any business can be thought of as a collection of producer systems generating events (hence data) * Consumer systems which use that data by either transforming it (hence creating derived streams of data) ??? * Consumed e.g. Stream Analytics --- # Redis Pub/Sub Code eaxmple from http://taswar.zeytinsoft.com/redis-pub-sub/ ```cs var redis = RedisStore.RedisCache; var sub = redis.Multiplexer.GetSubscriber(); sub.Subscribe("test", (channel, message) => { Console.WriteLine("Got notification: " + (string)message); }); var pub = redis.Multiplexer.GetSubscriber(); //pubish to test channel a message var count = pub.Publish("test", "Hello there I am a test message"); Console.WriteLine($"Number of listeners for test {count}"); ``` -- ### Run Redis with Docker ```sh $ docker run -d -p 6379:6379 --name some-redis redis ``` https://hub.docker.com/_/redis/ ??? * Simple --- # Messaging Patterns & ZeroMQ Advanced topic: http://zguide.zeromq.org/ ??? Check Request/Response aka Pirate patterns --- # Messaging inside applications Messaging is also a common way to send messages inside applications. Usually called _Message Bus_ or _Event Aggreator_. Exteremly simple implementation (not for _production_): ```cs public interface IMessageBus { void Publish<T>(string topic, T message); void Subscribe<T>(string topic, Action<T> handler); } ``` --- ```cs public class MessageBus : IMessageBus { public ConcurrentDictionary<string, ConcurrentBag<dynamic>> _subscriptions = new ConcurrentDictionary<string, ConcurrentBag<dynamic>>(); public void Publish<T>(string topic, T message) { if (_subscriptions.ContainsKey(topic)) { foreach (var action in _subscriptions[topic]) { // T message should be cloned if it is a reference type, so data can't be changed after new thread is created Task.Run(() => { action(message); }); }; } } public void Subscribe<T>(string topic, Action<T> handler) { if (!_subscriptions.ContainsKey(topic)) _subscriptions.TryAdd(topic, new ConcurrentBag<dynamic>()); _subscriptions[topic].Add(handler); } } ``` Proper small implementation __TinyMessenger__: https://github.com/grumpydev/TinyMessenger ??? * Using e.g. Redis Pub/Sus is also common iside applications. * Small implementation is also pretty large * Threading * Memory handling --- # References * https://www.rabbitmq.com/getstarted.html * http://zguide.zeromq.org/page:all * https://dzone.com/articles/microservices-vs-soa-is-there-any-difference-at-al * https://blog.buoyant.io/2017/04/25/whats-a-service-mesh-and-why-do-i-need-one/ * https://www.nginx.com/blog/service-discovery-in-a-microservices-architecture/ * https://microservices.io/patterns/apigateway.html * https://jack-vanlightly.com/blog/2017/12/4/rabbitmq-vs-kafka-part-1-messaging-topologies * https://docs.particular.net/tutorials/nservicebus-step-by-step/ * https://medium.com/ingeniouslysimple/how-did-we-get-to-service-meshes-682e1e3d6327
